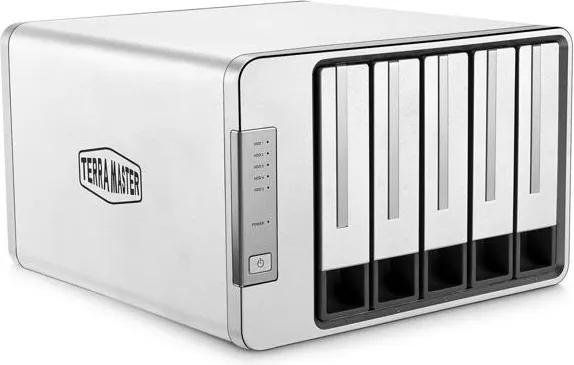

TerraMaster D5-300 RAID Storage

Supports 5 SATA hard drives
Up to 60TB storage capacity
Support RAID0 and RAID5 , do not support JBOD, SingleDisk,
RAID1 and RAID10
USB Type C interface ( USB3.0, 5Gbps, SUPERSPEED)

Real super speed with USB3.0 Transport Protocol!

D5-300 adopts USB3.0 5Gbps) SUPERSPEED protocol. In RAID 0, with desktop SSHD hard drives, the speed is up to 235MB/s (Read, max), and 210MB/s (Write, max).

Compatible with various hard drives

D5-300 is compatible with various hard drives, such as 3.5 inch SATA hard drives (including WD Green hard drives, WD Red hard drives, WD Purple hard drives, and Enterprise hard drives), 2.5 SATA hard drives, and 2.5 SATA SSD.

Hardware Specifications

Storage
Drive Bay(s)
5

Compatible Drive Type
2x 3.5 or 2.5 SATA 6Gb/s, SATA 3Gb/s Hard disk or SSD

supports hard disk group mode
Support RAID0 and RAID5 , do not support JBOD, SingleDisk, RAID1 and RAID10

Maximum Internal Raw Capacity
60 TB (12 TB HDD * 5) (Capacity may vary by RAID types)

External Ports
Data transmission interface
USB type-C x 1

Data transmission cable
USB Type-A - USB Type-C；Length：1M

File System
Internal Drives
FAT 32/16、NTFS

Read/write speed(max）
Read：210MB/s，Write：190MB/s (2 SSHD RAID0 mode)

Supported OS
Windows OS、Mac OS

Appearance

Size
227 x 225 x 136 mm

Housing material
aluminum

Weight
net weight: 2.16 Kg

Power
AC Input Power Voltage
100V to 240V AC

Power Frequency
50/60 HZ, Single Phase

Power Consumption
45.6W(Access)

Environment Temperature

Operating Temperature
5°C to 35°C (40°F to 95°F)

Storage Temperature
-10°C to 70°C (15°F to 155°F)

Certification
CCC、CE、FCC、UL

Notes
Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).

Environment & Packaging

Environment
RoHS Compliant
