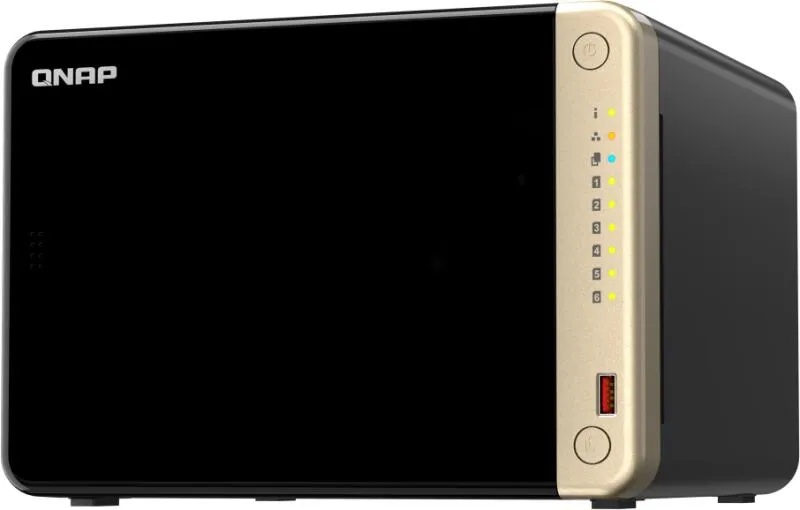

TS-664 is a compact 6-bay NAS with superior performance. Supporting up to 110 TB storage and 4 TB M. 2 SSD caching* at an affordable price, the TS-664 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.

The TS-664 uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2. 2. )Using six 3.5-inch 22 TB hard drives in RAID 5 and two 2 TB M. 2 SSDs. Hard drives and SSD sold separately.

• 2.5GbE is a must! TS-664 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
• Quad-core for multitasking Perform additional tasks, stream more media, and have more services running with an Intel® quad-core processor optimized for multitasking.
• Smooth video conversion Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices.
• Upgrade to dual-port 10GbE Futureproof your network connection by installing a PCIe dual-port 10GbE network card that delivers up to 1,644 MB/s transfer speed.
• Faster USB transfer Two USB 3.2 Gen 2 (10Gbps) ports allow faster backup to/from USB devices.
• More M. 2 NVMe SSDs If two M. 2 slots aren’t enough, install a QM2 PCIe expansion card for more M. 2 SSD slots.

    Hardware Specifications: Общи Характеристики  Packaged Quantity 1   шаси  Built-in Devices IR sensor   Процесор  Type Celeron  Installed Qty 1  Max Supported Qty 1  Manufacturer Intel  Processor Number N5095  Number of Cores Quad-Core  Max Turbo Speed 2,9 GHz   RAM  Installed Size 8 GB   Флаш памет  Installed Size 4 GB   Контролер за съхранение  Interface Type Serial ATA-600   производителнос т  Performance Concurrent connections (CIFS): 1500 - (with maximum memory), Maximum pool size: 308 TB, Maximum number of storage pool: 128, Maximum volume size: 250 TB, Maximum number of volume: 128, Maximum shared folder size: 250 TB, Maximum number of shared folder: 512, Maximum LUN size: 250 TB, Maximum number of targets LUN: 256, Minimum snapshot interval: 5 min, Maximum FTP connection: 1024, Local user account: 4096, Local group account: 512, Domain user/group account: 200000, Log recording: 3000 events per second, Virtual hosts: 32   Работа в мрежа  Network / Transport Protocol PPTP, IPv4, IPv6, L2TP, CIFS, WireGuard, QBelt, QuFTP, OpenVPN, DDNS, IPSec, iSCSI  Network Services Compatibility Network File System v3 (NFS v3), Network File System v4 (NFS v4), Microsoft CIFS, FTP, Apple File Protocol (AFP), HTTP, HTTPS, SFTP  Host Connectivity (compact list) 2.5 Gigabit Ethernet   Разширителни гнезда  Expansion Bays 6 (total) / 6 (free) x hot-swap - 2.5 / 3.5   Слотове за разширение  Expansion Slots 2 (total) / 2 (free) x M. 2 2280, 1 (total) / 1 (free) x PCI Express 3.0 x2   Осигурена ОС  Storage Operating System QNAP QTS 5.0. 1   Захранващо устройство  Power Consumption Operational 442 Watt  Voltage Required AC 100-240  Power Provided 120 Watt  Nominal Voltage AC 120/230 V  Power Consumption Stand by 23,22 Watt  Type External power adapter   Системни изисквания  OS Required SuSE Linux 12 or later, Oracle Solaris 10 or later, QNAP QVR Pro, Microsoft Windows 7 / 8 / 10 / 11, Ubuntu Linux 14.4 (64-bit), QNAP QVR Elite, Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019   Размери и Тегло  Width 23,5 cm  Depth 22,6 cm  Height 16,8 cm  Weight 2,9 kg   Размери и тегло (доставка)  Shipping Weight 4,56 kg   Разни  Features Security lock slot (cable lock sold separately), Smart Fan, 2 x 90 mm cooling fans, Built-in firewall, Secure Erase  Color Category Black, Gold  Security Slot Type Kensington security slot

Продукт известен още и като TS 664 8 G, TS6648G, TS 664 8G, TS 664-8G, TS-664-8 G
