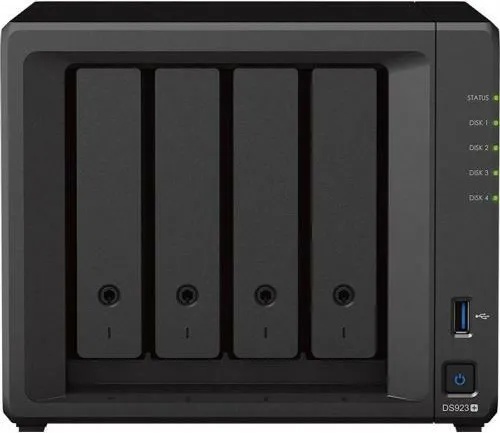

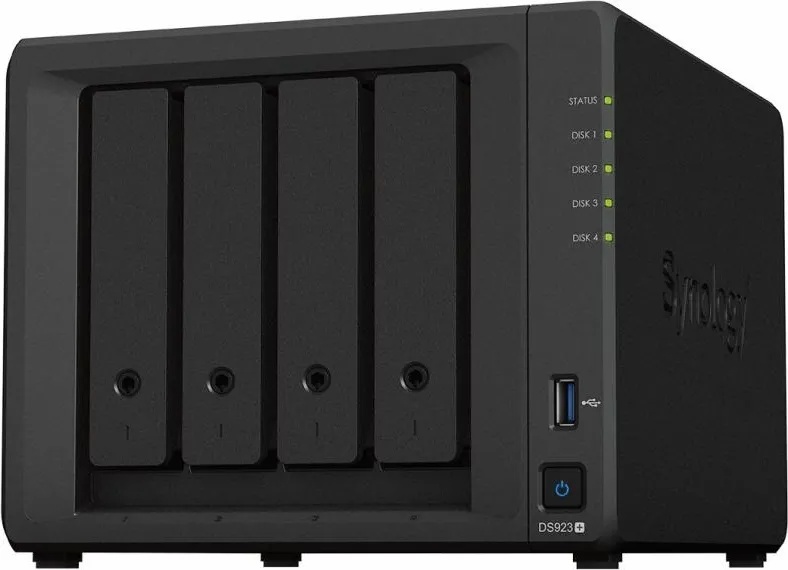

Synology DS923+

 Flexible storage platform for small businesses and home offices



The performance you need

Reduce transfer times with DS923+, designed to accelerate your workloads. Easily add faster networking and NVMe drives to further boost performance.



Storage that fits your needs

Is your data scattered across external drives and public cloud accounts? With DS923+, you can consolidate your data with over 50 TB across 4 bays. Need more space? Expand with DX517 for over 120 TB of storage.



Specifiations:

CPU

CPU Model
AMD Ryzen R1600


CPU Quantity
1


CPU Architecture
64-bit


CPU Frequency
2-core 2.6 (base) / 3.1 (turbo) GHz


Hardware Encryption Engine (AES-NI)


Memory

System Memory
4 GB DDR4 ECC


Memory Module Pre-installed
4 GB (4 GB x 1)


Total Memory Slots
2


Maximum Memory Capacity
32 GB (16 GB x 2)

Storage

Drive Bays
4


Maximum Drive Bays with Expansion Unit
9 (DX517 x 1)


M. 2 Drive Slots
2 (NVMe)


Compatible Drive Type*

• 3.5" SATA HDD


• 2.5" SATA SSD


• M. 2 2280 NVMe SSD


Hot Swappable Drive*



Notes

• The hot swappable drive feature is not supported by M. 2 SSD slots.


• "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

RJ-45 1GbE LAN Port*
2 (with Link Aggregation / Failover support)


USB 3.2 Gen 1 Port*
2


eSATA Port
1


Notes

• This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.


• The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

PCIe Expansion
1 x Gen3 x2 network upgrade slot

File System

Internal Drives

• Btrfs


• EXT4


External Drives

• Btrfs


• EXT4


• EXT3


• FAT


• NTFS


• HFS+


• exFAT

Appearance

Size (Height x Width x Depth)
166 mm x 199 mm x 223 mm


Weight
2.24 kg

Others

System Fan
92 mm x 92 mm x 2 pcs


Fan Speed Mode

• Full-Speed Mode


• Cool Mode


• Quiet Mode


Brightness Adjustable Front LED Indicators



Power Recovery



Noise Level*
22.9 dB(A)


Scheduled Power On / Off



Wake on LAN / WAN



Power Supply Unit / Adapter
100 W


AC Input Power Voltage
100V to 240V AC


Power Frequency
50/60 Hz, Single Phase


Power Consumption
35.51 W (Access)

11.52 W (HDD Hibernation)


British Thermal Unit
121.09 BTU/hr (Access)

39.28 BTU/hr (HDD Hibernation)


Notes



• Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature
0°C to 40°C (32°F to 104°F)


Storage Temperature
-20°C to 60°C (-5°F to 140°F)


Relative Humidity
5% to 95% RH

Certification

• FCC


• CE


• BSMI


• VCCI


• RCM


• UKCA


• EAC


• CCC


• KC

Продукт известен още и като DiskStation DS 923, DiskStationDS923, DiskStation DS 923+
