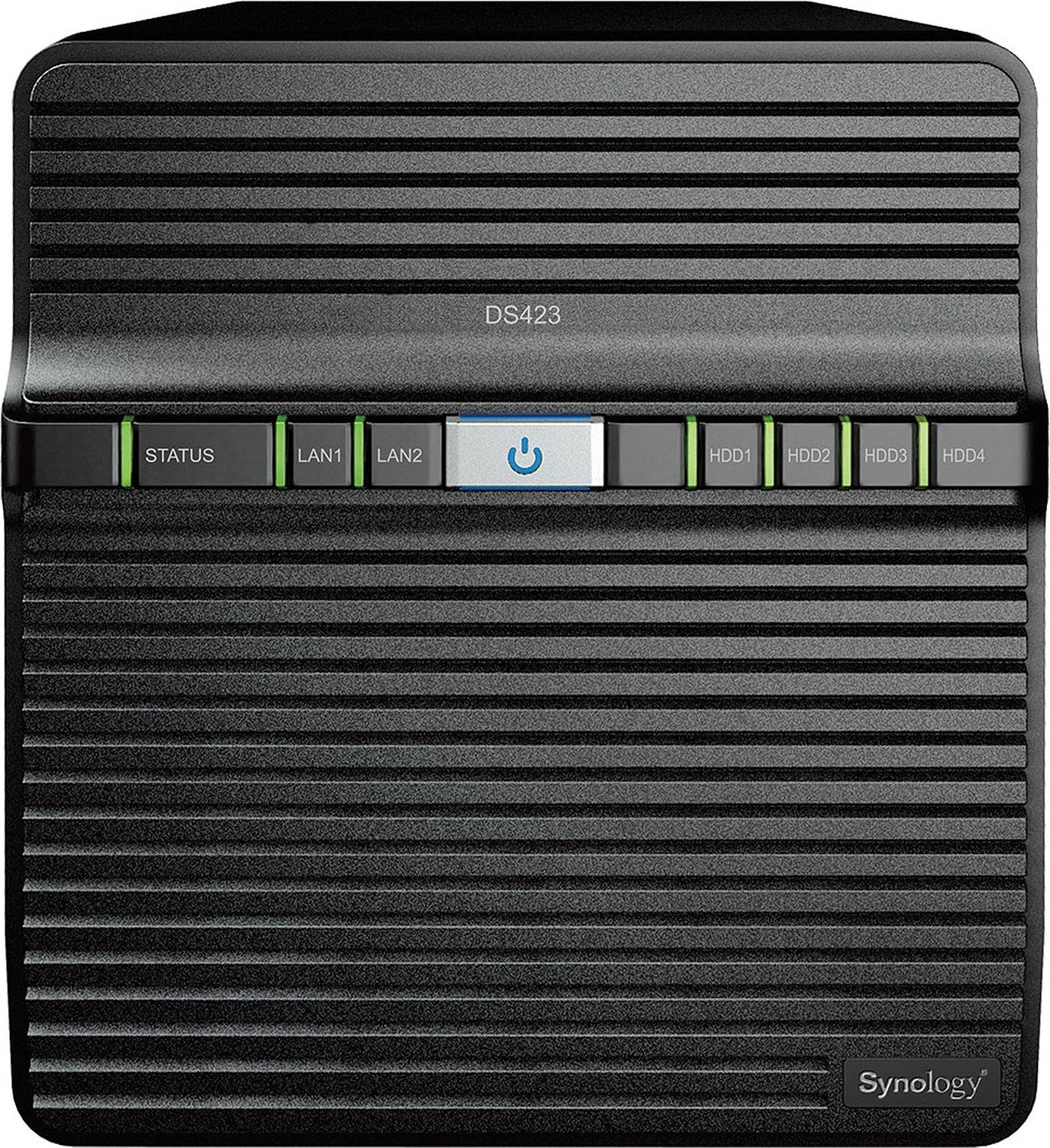

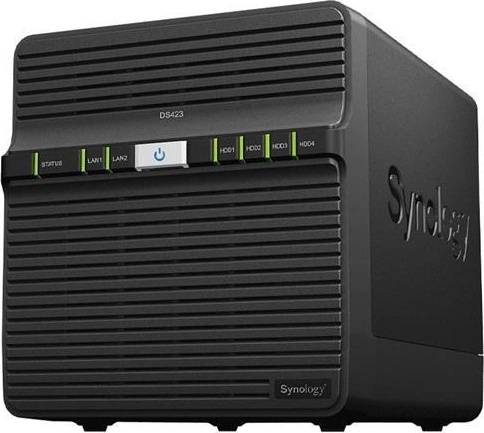

Synology DS423



Multi-device access

Browse, access, edit, and share files securely and conveniently via desktop, mobile, or web browser platforms. Use intuitive admin tools to track and set file permissions and control access to documents, files, and other data.



Specifications:



CPU

CPU Model
Realtek RTD1619B


CPU Quantity
1


CPU Architecture
64-bit


CPU Frequency
4-core 1.7 GHz


Hardware Encryption Engine
Yes

Memory

System Memory
2 GB DDR4 non-ECC


Notes
Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays
4


Compatible Drive Type*

• 3.5" SATA HDD


• 2.5" SATA SSD


Hot Swappable Drive*
Yes


Notes
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

RJ-45 1GbE LAN Port*
2 (with Link Aggregation / Failover support)


USB 3.2 Gen 1 Port*
2


Notes

• This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.


• The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

File System

Internal Drives

• Btrfs


• EXT4


External Drives

• Btrfs


• EXT4


• EXT3


• FAT


• NTFS


• HFS+


• exFAT

Appearance

Size (Height x Width x Depth)
184 mm x 168 mm x 230 mm


Weight
2.21 kg

Others

System Fan
80 mm x 80 mm x 2 pcs


Fan Speed Mode

• Full-Speed Mode


• Cool Mode


• Quiet Mode


Brightness Adjustable Front LED Indicators
Yes


Power Recovery
Yes


Noise Level*
20.6 dB(A)


Scheduled Power On / Off
Yes


Wake on LAN / WAN
Yes


Power Supply Unit / Adapter
90 W


AC Input Power Voltage
100V to 240V AC


Power Frequency
50/60 Hz, Single Phase


Power Consumption
32.41 W (Access)

4.97 W (HDD Hibernation)


British Thermal Unit
110.52 BTU/hr (Access)

16.95 BTU/hr (HDD Hibernation)

Temperature

Operating Temperature
0°C to 40°C (32°F to 104°F)


Storage Temperature
-20°C to 60°C (-5°F to 140°F)


Relative Humidity
5% to 95% RH

Certification

• FCC


• CE


• BSMI


• VCCI


• RCM


• UKCA


• EAC


• CCC


• KC

Compatibility:

HAT5310-18T
Твърд диск 18TB Synology HAT5310-18T, SATA 6Gb/s, 7200rpm, 512MB кеш, 3.5" (8.89 cm)

HAT5310-8T
Твърд диск 8TB Synology HAT5310-8T, SATA 6Gb/s, 7200rpm, 256MB кеш, 3.5" (8.89 cm)

HAT5300-16T
Твърд диск 16TB Synology HAT5300 (HAT5300-16T), SATA 6Gb/s, 7200 rpm, 512MB кеш, 3.5" (8.89 cm)

HAT5300-12T
Твърд диск 12TB Synology HAT5300 (HAT5300-12T), SATA 6Gb/s, 7200 rpm, 256 MB кеш, 3.5" (8.89 cm)

HAT5300-8T
Твърд диск 8TB Synology HAT5300 (HAT5300-8T), SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89 cm)

HAT5300-4T
Твърд диск 4TB Synology HAT5300-4T, SATA 6Gb/s, 7200 rpm, 3.5" (8.89 cm)



Продукт известен още и като DiskStation DS 423, DiskStationDS423
