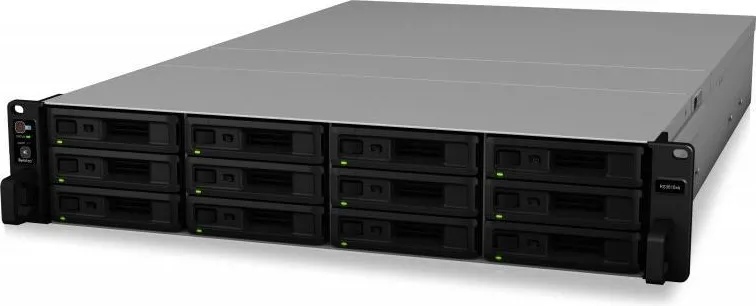

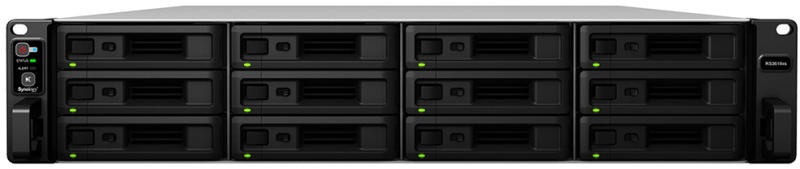

Synology RS3618xs

Synology RackStation RS3618xs

High performance and scalable NAS simplifies data management, optimizes virtualization environments for large scale businesses.

High-speed scalable storage server

Synology RS3618xs is a reliable, superior-performance network-attached storage solution for large-scale enterprises with demanding business applications. It simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance.

Ready for 10GbE and beyond

PCIe 3.0 slots allow for faster networking options as you expand your infrastructure. Together with the built-in quad Gigabit ports, RS3618xs offers comprehensive connectivity options for link aggregation and failover configurations.

Hardware Specifications
CPU
CPU Model Intel Xeon D-1521
CPU Architecture 64-bit
CPU Frequency Quad Core 2.4 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)

Memory
System Memory 8 GB DDR4 ECC UDIMM
Memory Module Pre-installed 8GB (1 x 8GB)
Total Memory Slots 4
Memory Expandable up to 64 GB (16 GB x 4)

Storage
Drive Bays 12
Maximum Drive Bays with Expansion Unit 36

Compatible Drive Type* (See all supported drives)

3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD

Maximum Internal Raw Capacity 144 TB (12 TB drive x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units 432 TB (144 TB + 12 TB drive x 24) (Capacity may vary by RAID types)

Maximum Single Volume Size

200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
108 TB

Hot Swappable Drive

External Ports
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
USB 3.0 Port 2
Expansion Port 2

PCIe
PCIe Expansion 2 x Gen3 x8 slots (x8 link)
Add-in-card support PCIe Network Interface Card (Learn more)

File System

Internal Drives

Btrfs
EXT4

External Drives

Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT*

Notes exFAT Access is purchased separately in Package Center.

Appearance
Size (Height x Width x Depth) 88 mm x 430.5 mm x 692 mm
Weight 14.5 kg

Others
System Fan 80 mm x 80 mm x 4 pcs

Fan Speed Mode

Full-Speed Mode
Cool Mode
Quiet Mode

Easy Replacement System Fan
Power Recovery
Noise Level* 50.2 dB(A)
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 500W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 142.76 W (Access)
55.05 W (HDD Hibernation)
British Thermal Unit 487.12 BTU/hr (Access)
187.84 BTU/hr (HDD Hibernation)

Environment Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH

Certification

EAC
VCCI
CCC
RCM
FCC
CE
BSMI
