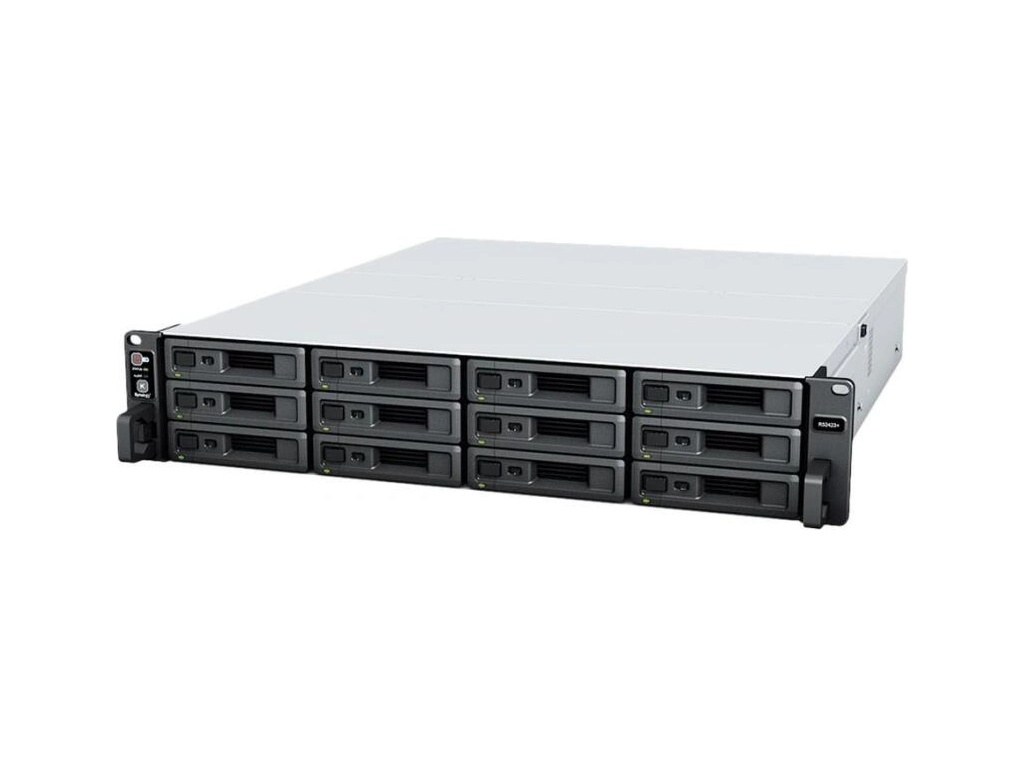

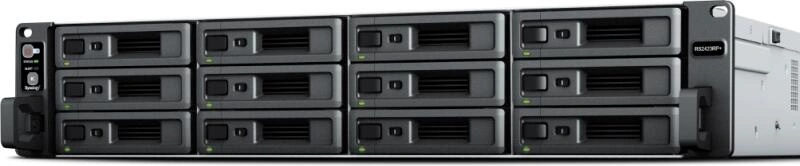

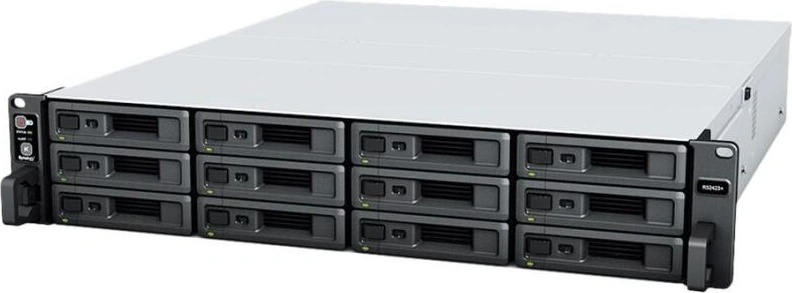

Synology RS2423+





Designed for reliability

The RS2423+ and RS2423RP+ come with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing.

Two RS2423+/RS2423RP+ units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime.

The RS2423RP+ also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source.



Specifications:

CPU

CPU Model
AMD Ryzen V1780B


CPU Quantity
1


CPU Architecture
64-bit


CPU Frequency
4-core 3.35 (base) / 3.6 (turbo) GHz


Hardware Encryption Engine (AES-NI)
Yes

Memory

System Memory
8 GB DDR4 ECC UDIMM


Memory Module Pre-installed
8 GB (8 GB x 1)


Total Memory Slots
2


Maximum Memory Capacity
32 GB (16 GB x 2)

Storage

Drive Bays
12


Maximum Drive Bays with Expansion Unit
24 (RX1223RP x 1)


Compatible Drive Type*

• 3.5" SATA HDD


• 2.5" SATA SSD


Hot Swappable Drive*
Yes

External Ports

RJ-45 1GbE LAN Port*
2 (with Link Aggregation / Failover support)


RJ-45 10GbE LAN Port
1


USB 3.2 Gen 1 Port*
2


Expansion Port
1


Notes

• This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.


• The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

PCIe Expansion
1 x Gen3 x8 slot (x4 link)

File System

Internal Drives

• Btrfs


• EXT4


External Drives

• Btrfs


• EXT4


• EXT3


• FAT


• NTFS


• HFS+


• exFAT

Appearance

Form Factor (RU)
2U


Size (Height x Width x Depth)
RS2423+ : 88 mm x 482 mm x 552 mmRS2423RP+ : 88 mm x 482 mm x 578 mm


Weight
RS2423+ : 11.5 kgRS2423RP+ : 11.9 kg


Notes
The rail kit is sold separately

Others

System Fan
60 mm x 60 mm x 3 pcs


Fan Speed Mode

• Full-Speed Mode


• Cool Mode


• Quiet Mode


Easy Replacement System Fan
Yes


Power Recovery
Yes


Noise Level*
RS2423+ : 52.3 dB(A)RS2423RP+ : 56.2 dB(A)


Scheduled Power On / Off
Yes


Wake on LAN / WAN
Yes


Power Supply Unit / Adapter
RS2423+ : 500 WRS2423RP+ : 350 W


Redundant Power Supply
RS2423+ : -RS2423RP+ :


AC Input Power Voltage
100 V to 240 V AC


Power Frequency
50/60 Hz, Single Phase


Power Consumption
RS2423+ : 119.95 W (Access) 46.21 W (HDD Hibernation)

RS2423RP+ : 114.86 W (Access) 42.33 W (HDD Hibernation)


British Thermal Unit
RS2423+ : 409.56 BTU/hr (Access) 157.78 BTU/hr (HDD Hibernation)

RS2423RP+ : 392.18 BTU/hr (Access) 144.53 BTU/hr (HDD Hibernation)

Temperature

Operating Temperature
0°C to 35°C (32°F to 95°F)


Storage Temperature
-20°C to 60°C (-5°F to 140°F)


Relative Humidity
5% to 95% RH

Certification

• FCC


• CE


• BSMI


• VCCI


• RCM


• UKCA


• EAC


• CCC


• KC


• UL
