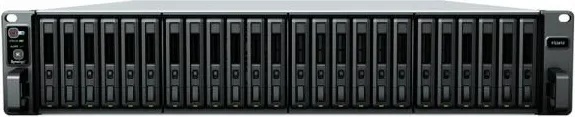

Synology SA3410



Flexibly expand storage capacity

Scale up your SA3610 and SA3410 flexibly to meet growing data demands whenever needed. Increase your storage capacity by adding up to seven 12-bay RX1222sas expansion units as your deployment grows.



Specifications:

Hardware Specifications

SA3410

CPU
CPU Model
Intel Xeon D-1541

CPU Quantity
1

CPU Architecture
64-bit

CPU Frequency
8-core 2.1 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine (AES-NI)
Yes

Memory
System Memory
16 GB DDR4 ECC RDIMM

Memory Module Pre-installed
16 GB (16 GB x 1)

Total Memory Slots
4

Maximum Memory Capacity
128 GB (32 GB x 4)

Storage
Drive Bays
12

Maximum Drive Bays with Expansion Unit
96 (RX1222sas x 7)

Compatible Drive Type*

• 3.5" SAS HDD


• 2.5" SAS SSD


• 3.5" SATA HDD


• 2.5" SATA SSD

Hot Swappable Drive*
Yes

External Ports
RJ-45 1GbE LAN Port
4 (with Link Aggregation / Failover support)

RJ-45 10GbE LAN Port
2 (with Link Aggregation / Failover support)

Management LAN Port
1

Max. number of LAN ports
15

USB 3.2 Gen 1 Port*
2

Expansion Port
1

Notes

• This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.


• The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe
PCIe Expansion
2 x Gen3 x8 slots (x8 link)

File System
Internal Drives

• Btrfs


• EXT4

External Drives

• Btrfs


• EXT4


• EXT3


• FAT


• NTFS


• HFS+


• exFAT

Appearance
Form Factor (RU)
2U

Size (Height x Width x Depth)
88 mm x 482 mm x 724 mm

Weight
14.5 kg

Others
System Fan
80 mm x 80 mm x 4 pcs

Fan Speed Mode

• Full-Speed Mode


• Cool Mode


• Quiet Mode

Easy Replacement System Fan
Yes

Power Recovery
Yes

Noise Level*
49.8 dB(A)

Scheduled Power On / Off
Yes

Wake on LAN / WAN
Yes

Power Supply Unit / Adapter
550 W

Redundant Power Supply
Yes

AC Input Power Voltage
100V to 240V AC

Power Frequency
50/60 Hz, Single Phase

Power Consumption
136.15 W (Access)

58.48 W (HDD Hibernation)

British Thermal Unit
464.56 BTU/hr (Access)

199.54 BTU/hr (HDD Hibernation)

Temperature
Operating Temperature
0°C to 35°C (32°F to 95°F)

Storage Temperature
-20°C to 60°C (-5°F to 140°F)

Relative Humidity
5% to 95% RH

Certification


• FCC


• CE


• BSMI


• VCCI


• RCM


• UKCA


• EAC


• CCC


• KC


• UL

Продукт известен още и като FlashStation FS 3410, FlashStationFS3410
