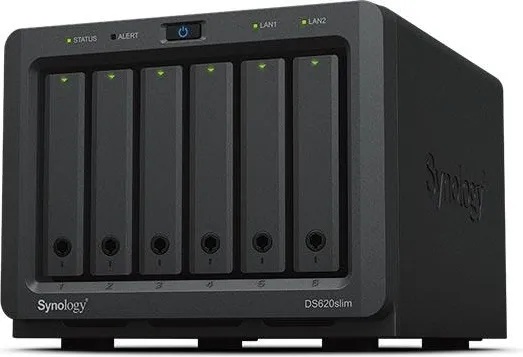

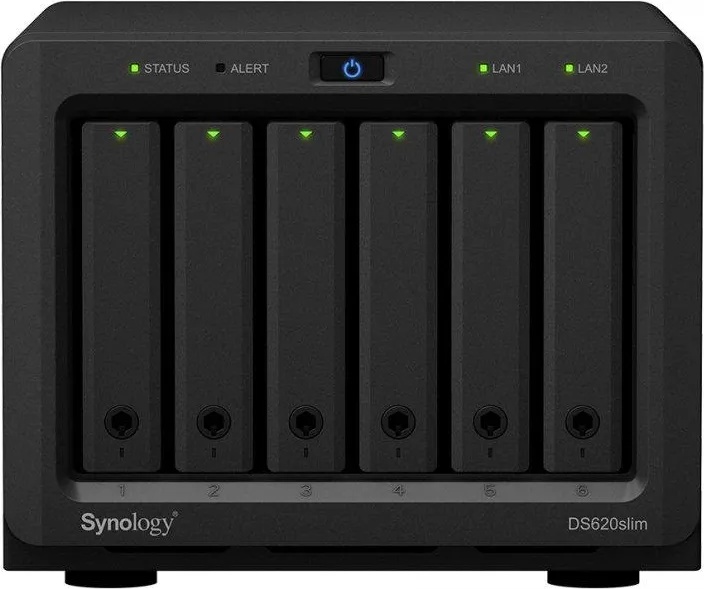

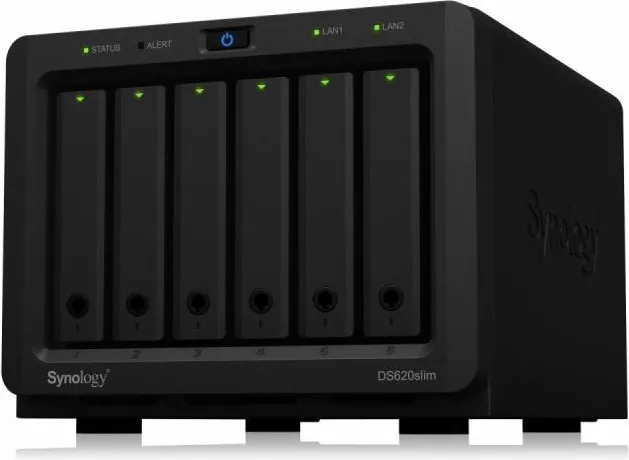

Synology DiskStation DS620slim

CPU

CPU Model: Intel Celeron J3355

CPU Architecture: 64-bit

CPU Frequency: Dual Core 2.0 (base) / 2.5 (burst) GHz

Hardware Encryption Engine (AES-NI)

Hardware Transcoding Engine: H. 264 (AVC), H. 265 (HEVC), MPEG-2 and VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 30

Memory

System Memory: 2 GB DDR3L

Memory Module Pre-installed: 2 GB (2 GB x 1)

Total Memory Slots: 2

Memory Expandable up to 6 GB (2 GB + 4 GB)

**Notes

Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

Storage

Drive Bays: 6(моля проверете по долу в списъка със съвместимите модели)

Compatible Drive Type*

2.5" SATA HDD

2.5" SATA SSD

Maximum Internal Raw Capacity: 46.08 TB (7.68 TB drive x 6) (Capacity may vary by RAID types)

Maximum Single Volume Size*: 108 TB

Hot Swappable Drive

Notes

"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

The maximum single volume size is not directly related to the maximum raw capacity. (Learn more)

Each internal volume (may consist of multiple drives) is expandable up to 108TB.

External Ports

RJ-45 1GbE LAN Port: 2 (with Link Aggregation / Failover support)

USB 3.0 Port: 2

File System

Internal Drives

Btrfs

EXT4

External Drives

Btrfs

EXT4

EXT3

FAT

NTFS

HFS+

exFAT*

Notes: exFAT Access is purchased separately in Package Center.

Appearance

Size (Height x Width x Depth): 121 mm x 151 mm x 175 mm

Weight: 1.4 kg

Others

System Fan: 80 mm x 80 mm x 1 pcs

Fan Speed Mode

- Full-Speed Mode

- Cool Mode

- Quiet Mode

Easy Replacement System Fan: Yes

Brightness Adjustable Front LED Indicators:Yes

Power Recovery: Yes

Noise Level*: 20.5 dB(A)

Scheduled Power On / Off: Yes

Wake on LAN / WAN: Yes

Power Supply Unit / Adapter: 65 W

AC Input Power Voltage 100 V to 240 V AC

Power Frequency 50/60 Hz, Single Phase

Power Consumption*: 34.88 W (Access)

7.59 W (HDD Hibernation)

British Thermal Unit: 119.1 BTU/hr (Access)

25.92 BTU/hr (HDD Hibernation)

Notes

Power consumption is measured when it is fully loaded with Western Digital 1TB WD10JFCX hard drive(s).

Noise Level Testing Environment: Fully loaded with WD 1TB WD10JFCX hard drive(s) in the idle state. Two G. R. A. S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 17.2 dB(A); Temperature: 23.6˚C; Humidity: 58.2%.

Temperature

Operating Temperature: 5°C to 40°C (40°F to 104°F)

Storage Temperature: -20°C to 60°C (-5°F to 140°F)

Relative Humidity: 5% to 95% RH

Certification

EAC

VCCI

RCM

FCC

CE

BSMI

Optional Accessories

- D3NS1866L-4G DDR3 non-ECC SO-DIMM

- Surveillance Device License Pack

- VS360HD

- VS960HD



Compatible Drives:

WD10JFCX
Твърд диск 1TB WD Red NAS, SATA 6Gb/s, 5400rpm, 16MB, 2.5" (6.35 cm)

ST4000LM024
Твърд диск 4TB Seagate BarraCuda SATA 6Gb/s, 5400 rpm, 128MB кеш, 2.5" (6.35cm), височина 1.5 cm

ST2000LM015
Твърд диск 2TB Seagate Barracuda ST2000LM015, SATA 6Gb/s, 5400 rpm, 128MB, 2.5" (6.35cm)

ST1000LM048
Твърд диск 1TB Seagate BarraCuda ST1000LM048, SATA 6Gb/s, 5400 rpm, 128 MB кеш, 2.5" (6.35cm)



Продукт известен още и като DiskStation DS 620 slim, DiskStationDS620slim, DiskStation DS620 slim
