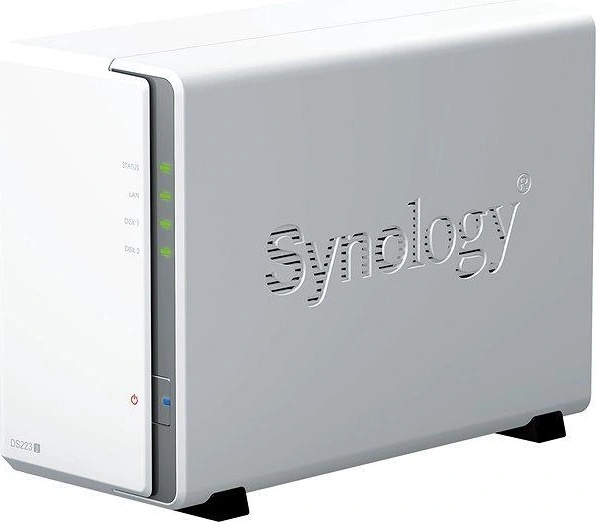

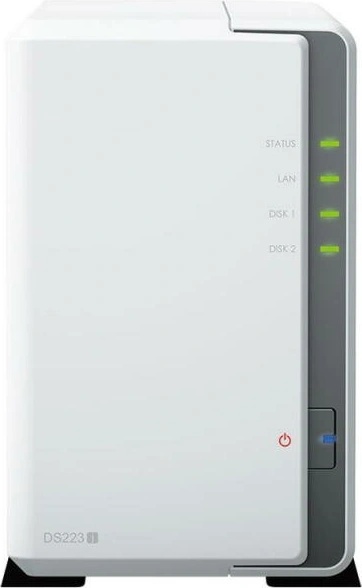

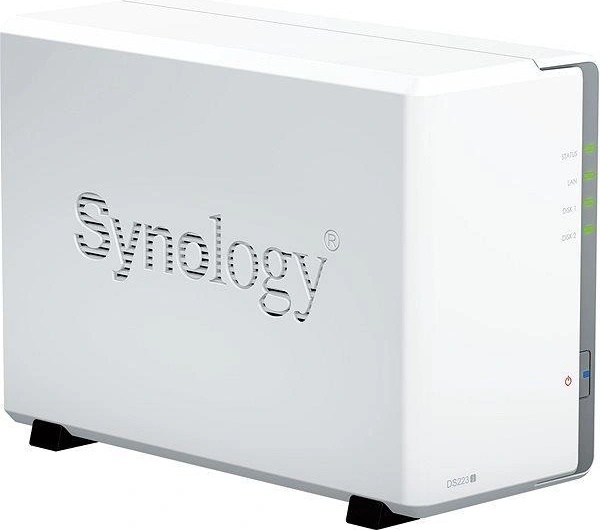

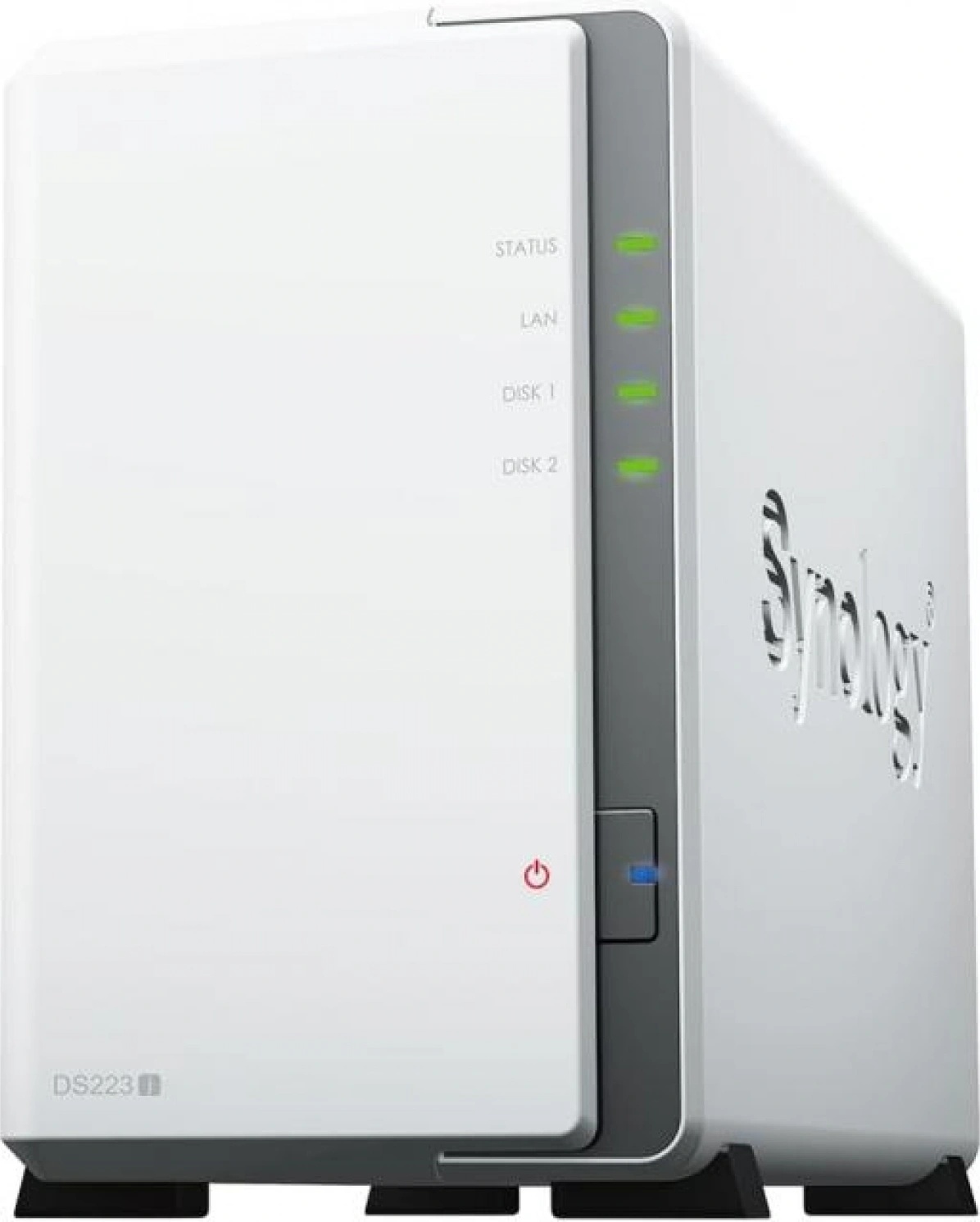

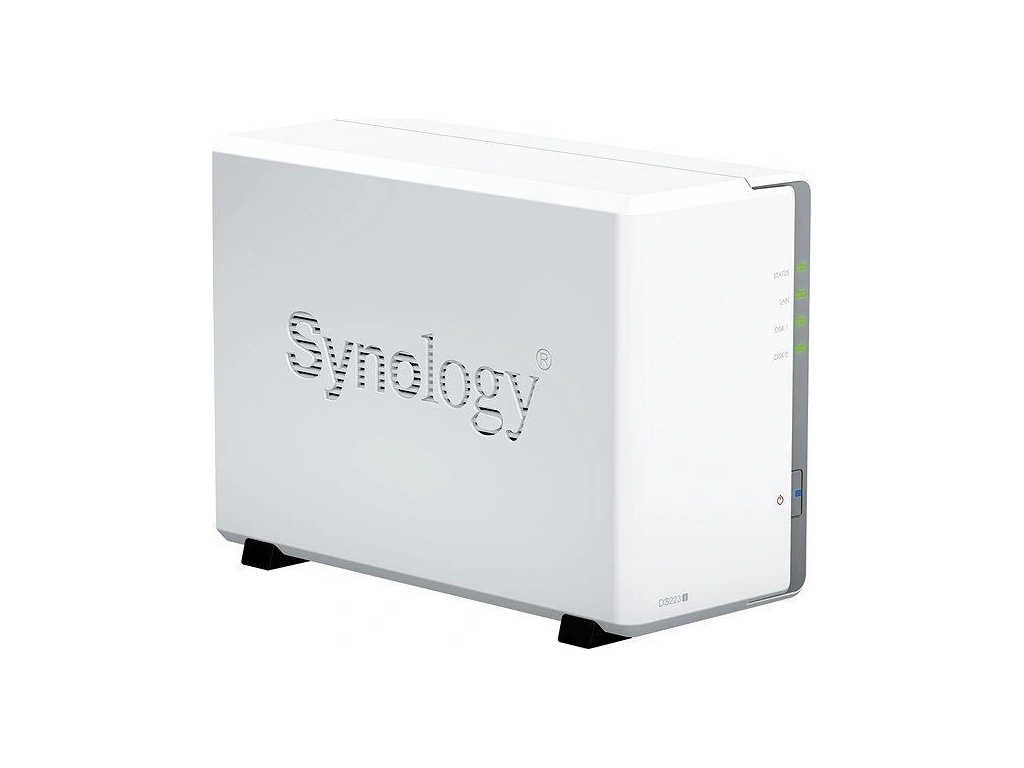

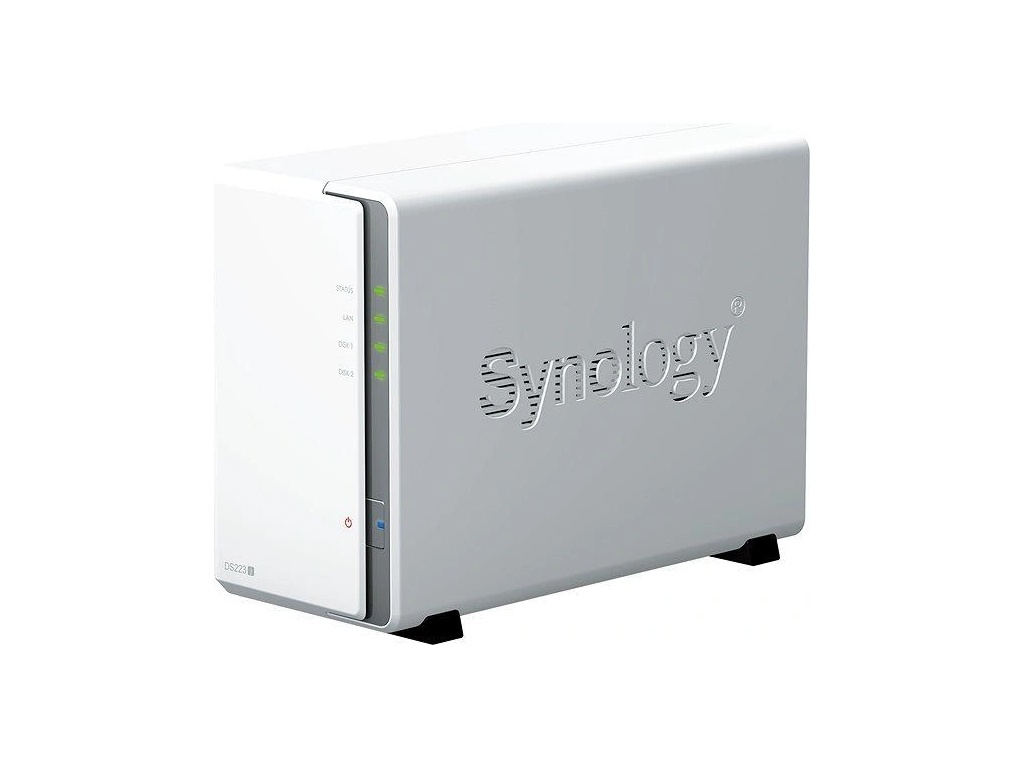

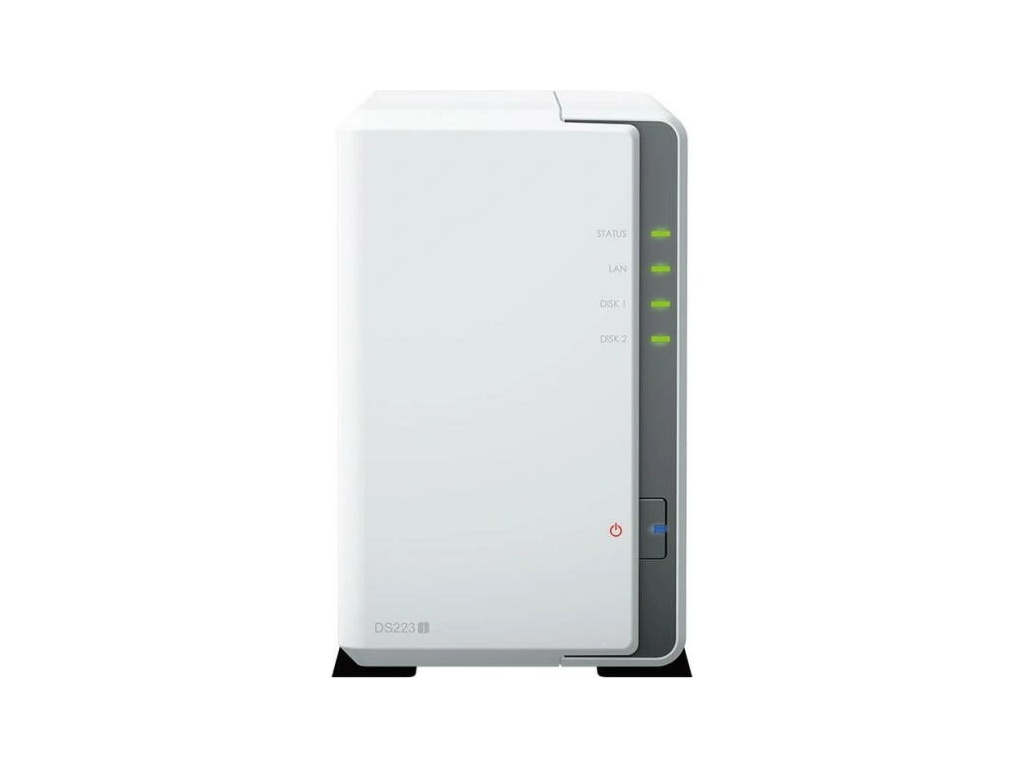

Synology DS223J 1,7GHz quad core Realtek RTD1619B, 1GB DDR4 RAM, 1x Gb LAN, 2x USB3.2, 2x non-hotswap HDD (not incl. )

CPU Model Realtek RTD1619B
CPU Quantity 1
CPU Architecture 64-bit
CPU Frequency 4-core 1.7 GHz
Hardware Encryption Engine
System Memory 1 GB DDR4 non-ECC
Notes Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Drive Bays 2
Compatible Drive Type* (See all supported drives) 3.5" SATA HDD
2.5" SATA SSD (with optional 2.5" Disk Holder) Hot Swappable Drive* -
Notes "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

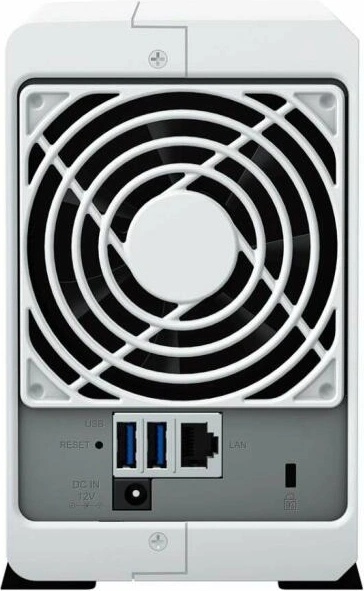

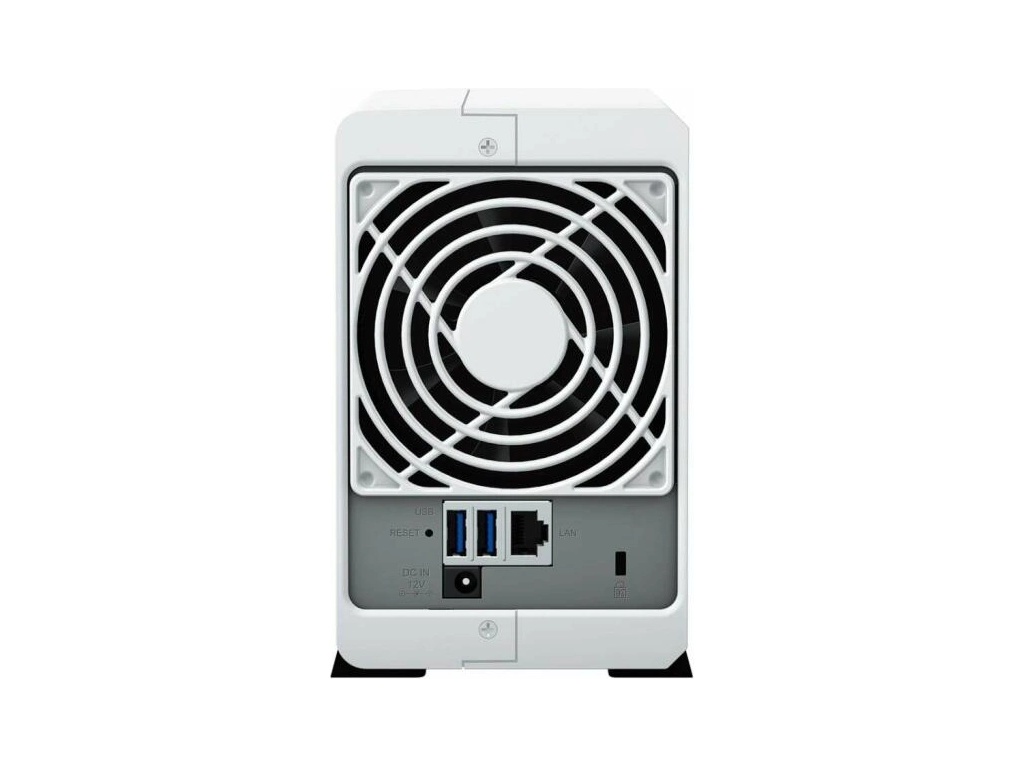

External Ports
RJ-45 1GbE LAN Port* 1
USB 3.2 Gen 1 Port* 2 This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. File System
Internal Drives Btrfs
EXT4 External Drives Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT Notes Btrfs file system is available from DSM 7.2-64570.
Appearance
Size (Height x Width x Depth) 165 mm x 100 mm x 225.5 mm
Weight 0.88 kg
Others
System Fan 92 mm x 92 mm x 1 pcs
Fan Speed Mode Full-Speed Mode
Cool Mode
Quiet Mode
Low-power Mode Brightness Adjustable Front LED Indicators V
Power Recovery V
Noise Level* 18.2 dB(A)
Scheduled Power On / Off V
Wake on LAN / WAN V
Power Supply Unit / Adapter 60 W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 16.31 W (Access)
4 W (HDD Hibernation)
British Thermal Unit 55.62 BTU/hr (Access)
13.64 BTU/hr (HDD Hibernation)
Notes For more information on how power consumption is measured, refer to this article.
Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G. R. A. S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% Temperature
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC Warranty
2-year hardware warranty, extendable to 4 years with Extended Warranty Plus

Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions.
The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) Environment
RoHS Compliant
Packaging Content Main Unit X 1
Accessory Pack X 1
AC Power Adapter X 1
AC Power Cord X 1
RJ-45 LAN Cable X 1
Quick Installation Guide X 1 Optional Accessories 3.5" SATA HDD: HAT3300
Surveillance Device License Pack
Disk Holder: Type C DSM Specifications
Storage Management
Maximum Single Volume Size* 108 TB
Maximum Internal Volume Number 64
Supported RAID Type Synology Hybrid RAID
Basic
JBOD
RAID 0
RAID 1 RAID Migration Basic to RAID 1
Volume Expansion with Larger HDDs Synology Hybrid RAID
RAID 1
