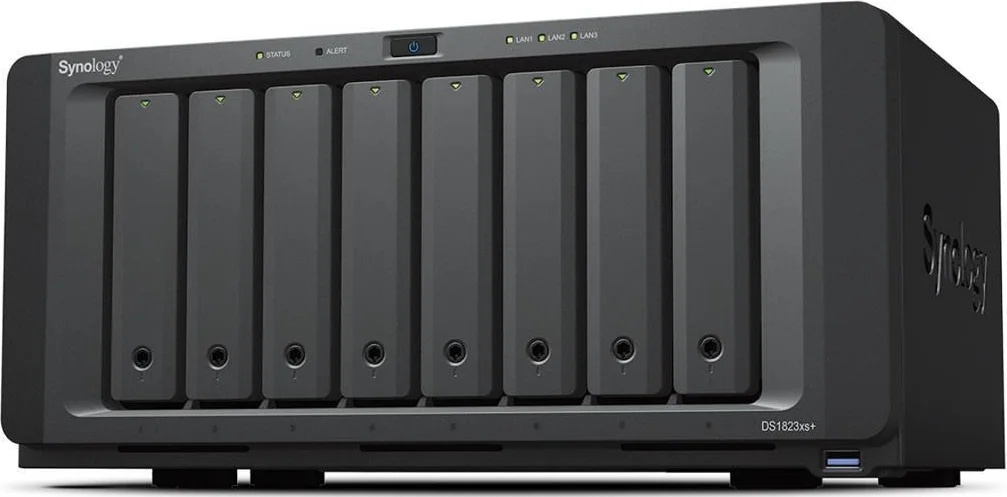

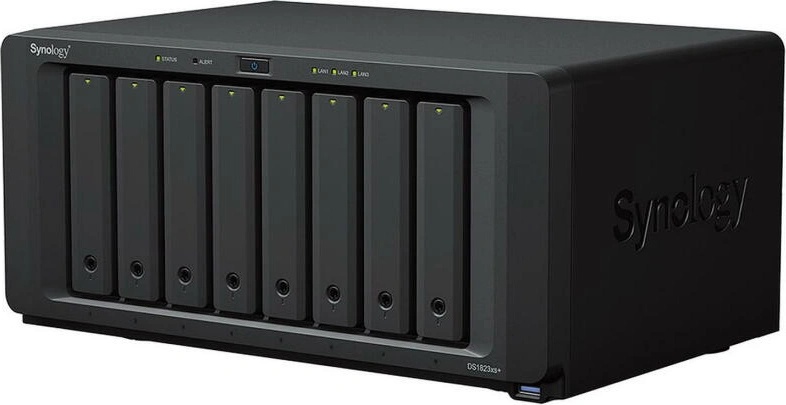

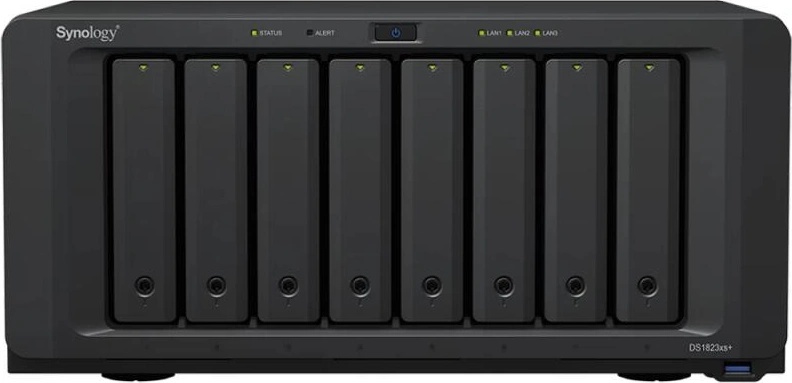

Synology DS1823XS+





Safe, dependable, and scalable

Built-in data integrity protection, remote management options, and easy hardware expansion make the DS1823xs+ dependable, easy to maintain, and cost efficient.



Data integrity protection

The Btrfs file system helps prevent data corruption or loss through metadata mirroring, file self-healing, and efficient point-in-time snapshots. ECC memory provides additional integrity safeguards.



Efficient remote management

Monitor, manage, and replace drives and storage online in Synology DSM. Remotely reboot, reset, or view logs while the system is down thanks to out-of-band management (OOB).



Plug-and-play expansion

The DS1823xs+ can be scaled to up to 18 bays by adding two DX517 expansion units without system downtime, thanks to online storage and volume expansion.

Specifications:

CPU

CPU Model
AMD Ryzen V1780B


CPU Quantity
1


CPU Architecture
64-bit


CPU Frequency
4-core 3.35 (base) / 3.6 (turbo) GHz


Hardware Encryption Engine (AES-NI)
Yes

Memory

System Memory
8 GB DDR4 ECC SODIMM


Memory Module Pre-installed
8 GB (8 GB x 1)


Total Memory Slots
2


Maximum Memory Capacity
32 GB (16 GB x 2)

Storage

Drive Bays
8


Maximum Drive Bays with Expansion Unit
18 (DX517 x 2)


M. 2 Drive Slots
2 (NVMe)


Compatible Drive Type*

• 3.5" SATA HDD


• 2.5" SATA SSD


• M. 2 2280 NVMe SSD


Hot Swappable Drive*
Yes

External Ports

RJ-45 1GbE LAN Port*
2 (with Link Aggregation / Failover support)


RJ-45 10GbE LAN Port
1


Management LAN Port
1


USB 3.2 Gen 1 Port*
3


eSATA Port
2


Notes
This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.

PCIe

PCIe Expansion
1 x Gen3 x8 slot (x4 link)

File System

Internal Drives

• Btrfs


• EXT4


External Drives

• Btrfs


• EXT4


• EXT3


• FAT


• NTFS


• HFS+


• exFAT

Appearance

Size (Height x Width x Depth)
166 mm x 343 mm x 243 mm


Weight
6.2 kg

Others

System Fan
120 mm x 120 mm x 2 pcs


Fan Speed Mode

• Full-Speed Mode


• Cool Mode


• Quiet Mode


Easy Replacement System Fan
Yes


Brightness Adjustable Front LED Indicators
Yes


Power Recovery
Yes


Noise Level*
23.6 dB(A)


Scheduled Power On / Off
Yes


Wake on LAN / WAN
Yes


Power Supply Unit / Adapter
250 W


AC Input Power Voltage
100V to 240V AC


Power Frequency
50/60 Hz, Single Phase


Power Consumption
87.93 W (Access)

28.37 W (HDD Hibernation)


British Thermal Unit
300.23 BTU/hr (Access)

96.87 BTU/hr (HDD Hibernation)

Temperature

Operating Temperature
0°C to 40°C (32°F to 104°F)


Storage Temperature
-20°C to 60°C (-5°F to 140°F)


Relative Humidity
5% to 95% RH

Certification

• FCC


• CE


• BSMI


• VCCI


• RCM


• EAC


• CCC


• KC




Продукт известен още и като DiskStation DS 1823 xs, DiskStationDS1823xs, DiskStation DS1823 xs+
