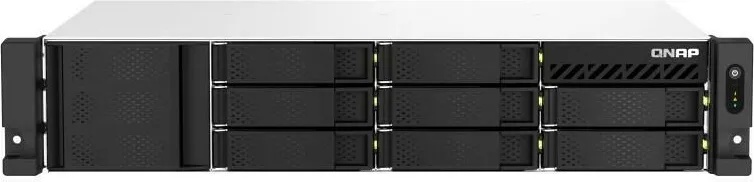

QNAP TS-873AeU-4G

CPU
AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor

CPU Architecture
64-bit x86

Floating Point Unit:
YES

Encryption Engine
(AES-NI)

Hardware-accelerated Transcoding
Optional via a PCIe graphics card

System Memory
4 GB SODIMM DDR4 (1 x 4 GB)

Maximum Memory
64 GB (2 x 32 GB)

Memory Slot
2 x SODIMM DDR4

Support ECC memory:
Yes

For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory
5GB (Dual boot OS protection)

Drive Bay
8 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www. qnap. com/compatibility/

Drive Compatibility
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Hot-swappable:
Yes

M. 2 Slot
2 x M2 2280 (PCIe Gen3 x 1)

SSD Cache Acceleration Support:
Yes

GPU pass-through:
Yes

2.5 Gigabit Ethernet Port (2.5G/1G/100M)
2 (2.5G/1G/100M/10M)

5 Gigabit Ethernet Port (5G/2.5G/1G/100M)
Optional via a network adapter

10 Gigabit Ethernet Port
Optional via a network adapter

Wake on LAN (WOL):
Yes

Only the 2.5GbE port

Jumbo Frame:
Yes

PCIe Slot
1 x PCIe Gen3 x8

USB 3.2 Gen 2 (10Gbps) Port 4 (2 x Type A, 2 x Type C)
HDMI Output
Optional via a PCIe graphics card

Form Factor
2U Rackmount

LED Indicators HDD 1-8, Status, LAN, USB, Power
Buttons
Power, Reset

Dimensions (HxWxD)
89 × 482 × 297.4 mm

Weight (Net)
7.61 kg

Weight (Gross)
10.2 kg

Operating temperature
0 - 40 °C (32°F - 104°F)

Storage Temperature
-20 - 70°C (-4°F - 158°F)

Relative Humidity
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit
250W PSU, 100 - 240V

Power Consumption: HDD Sleep Mode
26.76 W

Power Consumption: Operating Mode, Typical
52.49 W

Tested fully populated with WD10EFRX hard drives.

Fan
3 x 60mm, 12VDC

System Warning Buzzer: Yes

Max. Number of Concurrent Connections (CIFS) - with Max. Memory 2000
