Описание
Софтуер за back-up Да

Изводи

Ethernet Да
Wi-Fi Не
USB порт Да
eSata порт Не

Размери

Ширина 430 мм
Височина 44 мм
Дълбочина 480 мм

Виждате грешка в описанието или таблицата? Сигнализирайте ни!

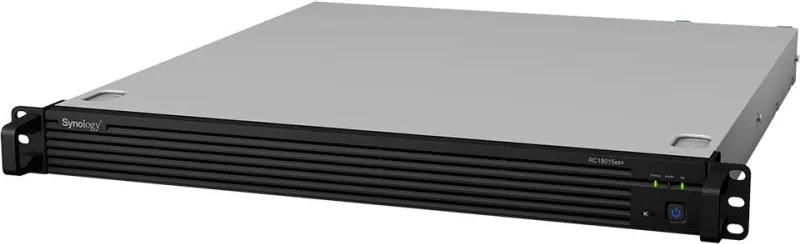

Quad core Intel Xeon E3 Quad core 3.3GHz, 8 GB DDR3 ECC, up to 180 HDD with 15x RXD1215sas ( for high-availability cluster - 2x RC18015xs+ and minimum 1x RXD1215sas)
Specifications:
CPU Model Intel Xeon E3-1230 v2
CPU Frequency Quad Core 3.3 GHz
Floating Point
Hardware Encryption Engine (AES-NI)
Memory
System Memory 8 GB DDR3 ECC
Memory Module Pre-installed 4 GB X 2
Total Memory Slots 4
Memory Expandable up to 32 GB (8 GB X 4)
Storage
Maximum Drive Bays with Expansion Unit 180
External Ports
USB 3.0 Port 2
Expansion Port 1
File System
Internal Drives

Btrfs
EXT4

External Drives

Btrfs
EXT4
EXT3
FAT
NTFS
HFS+

Appearance
Size (Height X Width X Depth) 44 mm X 430 mm X 480 mm
Weight 7.3 kg
Others
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support) + 1 for Heartbeat
PCIe x8 Slot for 10GbE / 1GbE Network Card (See more) 1 (at x8 mode)
Wake on LAN/WAN
System Fan 40 mm X 40 mm X 6 pcs
Fan Speed Mode

Cool Mode
Quiet Mode

Easy Replacement System Fan
Power Recovery
Noise Level* 48 dB(A)
Scheduled Power On/Off
Power Supply Unit / Adapter 2 X 150W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 60.16 W (Access)
British Thermal Unit 205.27 BTU/hr (Access)
Redundant Power Supply (for xs+ and RP model)
Environment Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification

FCC Class A
CE Class A
BSMI Class A

Notes When upgrading RAM to more than 24GB, the original 4GB RAM modules must be removed.
DSM Specifications ( See more )
Storage Management
Maximum Single Volume Size

200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
108 TB

Maximum Internal Volume Number 1024
Maximum iSCSI Target Number 128
Maximum iSCSI LUN 512
iSCSI LUN Clone/Snapshot, Windows ODX
RAID Group
Supported RAID Type

Basic
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10

RAID Migration

Basic to RAID 1
Basic to RAID 5
RAID 1 to RAID 5
RAID 5 to RAID 6

Volume Expansion with Larger HDDs

RAID 1
RAID 5
RAID 6

Volume Expansion by Adding a HDD

RAID 5
RAID 6
JBOD

Global Hot Spare Supported RAID Type

RAID 1
RAID 5
RAID 6
RAID 10

SSD Support
SSD Read/Write Cache (White Paper)
File Sharing Capacity
Maximum User Accounts 16000
Maximum Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 32
Maximum Concurrent CIFS/AFP/FTP Connections 2048
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Data Protection Manager
Shared Folder Snapshots 256
High Availability Manager
Log Center
Syslog Events per Second 3000
Virtualization
VMware vSphere 5 with VAAI
Windows Server 2012
Windows Server 2012 R2
Citrix Ready
Add-on Packages (See more)
Antivirus Essential
Antivirus by McAfee (Trial)
Audio Station
Central Management System
Cloud Station
Maximum Concurrent File Transfers 1024
Cloud Sync
Directory Server
DNS Server
Download Station
Maximum Concurrent Download Tasks 80
Glacier Backup
HiDrive Backup
iTunes Server
Java Manager
Mail Server
Mail Station
Media Server
DLNA Compliance
Note Station
Photo Station
RADIUS Server
Surveillance Station
Maximum IP cam (Licenses required) 90 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H. 264)* 2700 FPS @ 720p (1280x720)
1080 FPS @ 1080p (1920×1080)
650 FPS @ 3M (2048x1536)
500 FPS @ 5M (2591x1944)
Total FPS (MJPEG)* 900 FPS @ 720p (1280x720)
360 FPS @ 1080p (1920×1080)
250 FPS @ 3M (2048x1536)
150 FPS @ 5M (2591x1944)
Video Station
Video Transcoding Group 1 (See more)
VPN Server
Maximum Connections 30
Notes Surveillance Station throughput is tested with Axis P1347 (H. 264@1280x720@30FPS), using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. Recording video is saved every 5 minutes with the limit of archive folder up to 1GB.
Environment & Packaging
Environment RoHS Compliant
Packaging Content

Main Unit X 1
Accessory Pack X 1
AC Power Cord X 2
Quick Installation Guide X 1

Optional Accessories

Camera License Pack
8GB (4GB X 2) ECC RAM Module Kit
16GB (8GB X 2) ECC RAM Module Kit
Expansion Unit: RXD1215sas X 15
VS360HD
Synology RKS1314 - Rail Kit Sliding
Synology RKM114 - Rail Kit Mounted
Synology Ethernet Adapter E10G15-F1 Продукт известен още и като RC 18015 xs, RC18015xs, RC 18015xs+, RC18015 xs+
